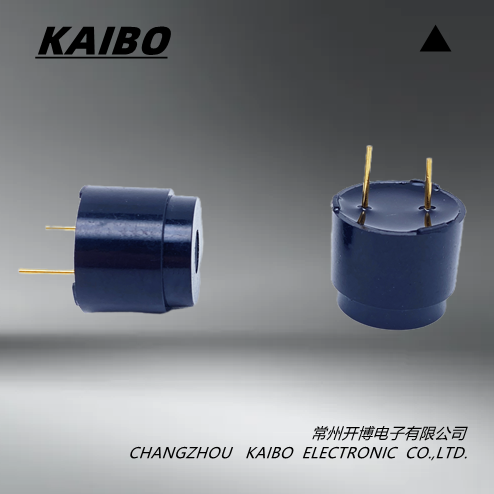

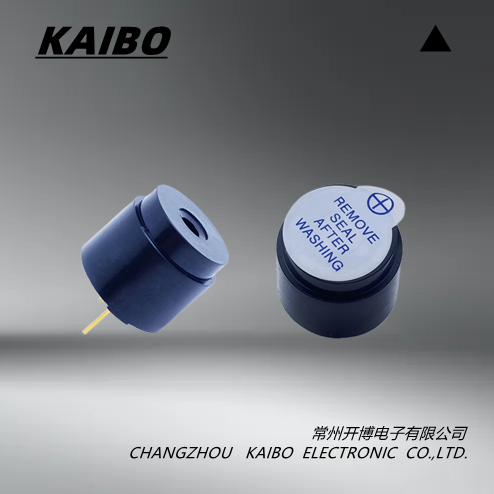

KM16140-115R(12V)-2048Hz(电磁式无源插针蜂鸣器)

TYPE

KM16140-115R(12V)-2048Hz（Au）

Rated Voltage            (V0-p)

12

Operating Voltage      (V0-p)

10～14

Rated current              (mA)

≤60

Coil Resistance         (Ω)

115±15%

Sound Output at10cm     (dB)

≥85

Resonant Frequency       (Hz)

2048

Housing Material

PBT

Lead Pin

Au plated brass   (金针)

Operating Temperature (℃)

-20～+70

Storage Temperature      (℃)

-30～+85

Weight                 (g)

4.8

Environmental   Protection Regulation

Rohs
