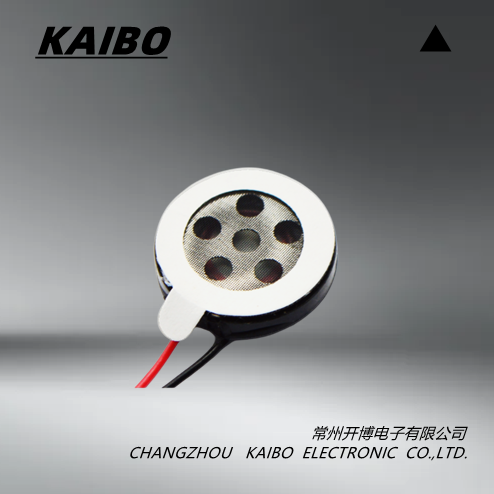

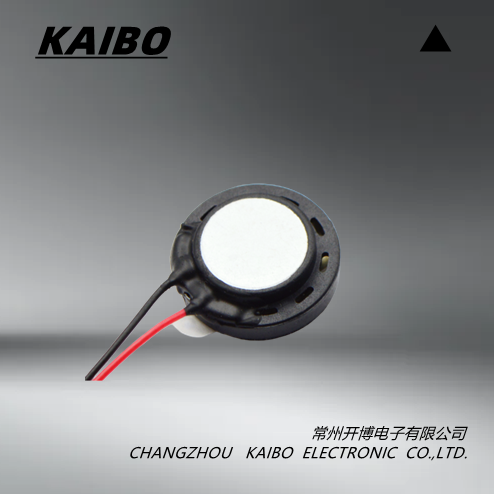

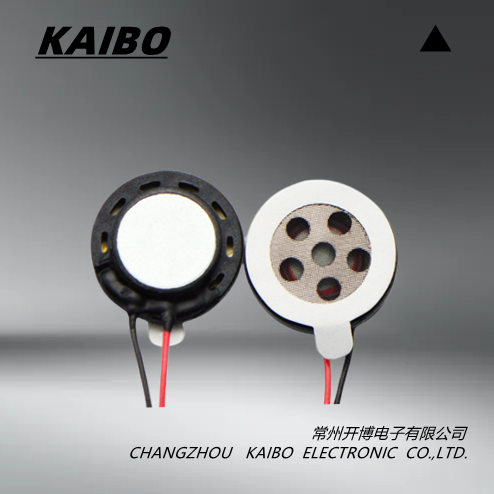

KS13

No.

ITEM

UNIT

SPECIFICATION

1

Size

mm

Φ13*3.6

2

Impedance

Ω

8±15% at 1KHz, 1.0V

3

Rated Input Power

W

0.5

4

Max Input Power

W

1.0

5

Lowest Resonance Frequency

Hz

800±20%

6

Frequency Range

Hz

Fo～9KHz

7

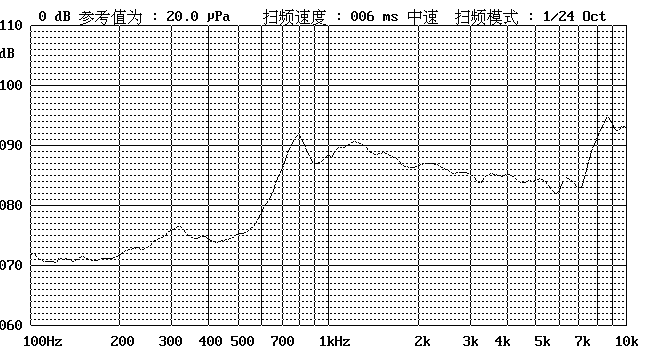

Sound Pressure Level

dB

85±3 at 0.8, 1.0, 1.2, 1.5 KHz Input1.26V=0.2W/0.1m

8

Distortion

Not exceed 10% at 1KHz, Input:1.26V=0.2W

9

Wire

mm

40.0±5.0

10

Operating Temperature

℃

-20～ +60

11

Storage   Temperature

℃

-30～ +70

12

Environmental Protection Regulation

ROHS
